Eclipse 3.5 and FDT 3.2 for Actionscript development – Part 3 – Configuration

6 99

In the second post of the serie I suggested some useful plugins. Now is time to configure the Eclipse and FDT installation.

Obviously this is my way of configuring both, so if you would like to make some changes I suggest you to explore all the menus and submenus in Eclipse because you’ll find a lot of interesting properties that can be customized to suit your needs. Here is my configuration.

1) Eclipse preferences configuration

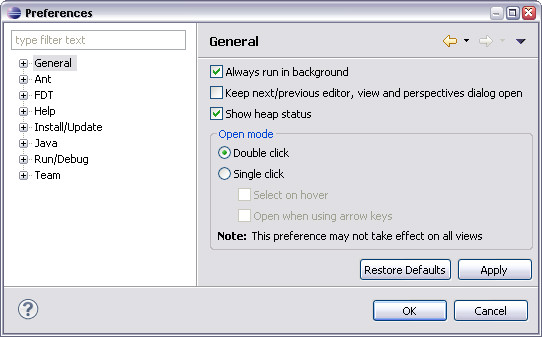

  • Window -> Preferences -> General -> Always run in background
    Window -> Preferences -> General -> Show heap status

    pref_general

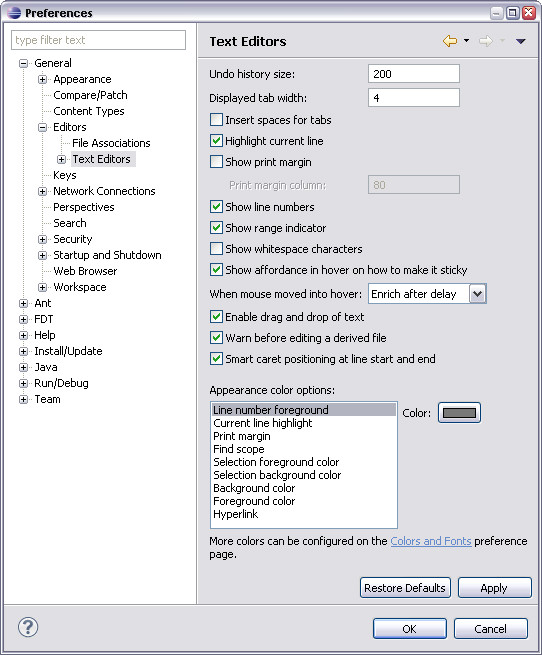

  • Window -> Preferences -> General -> Editors -> Text Editors -> Show line numbers
    pref_general_editors_texteditors

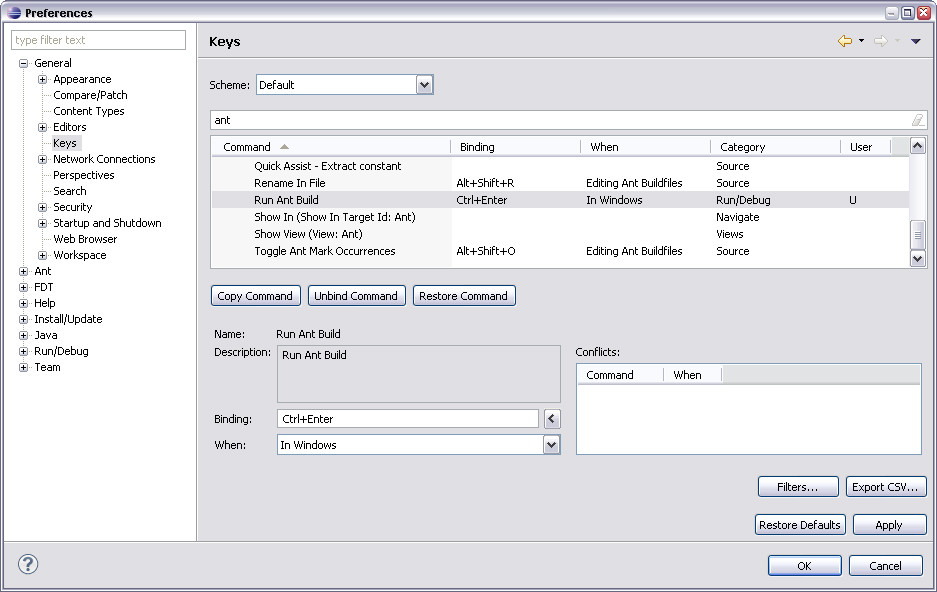

  • Window -> Preferences -> General -> Keys -> Select the “Run Ant Build” and in Binding press CTRL + ENTER to bind this shortcut to the command
    pref_general_keys

2) FDT preferences configuration

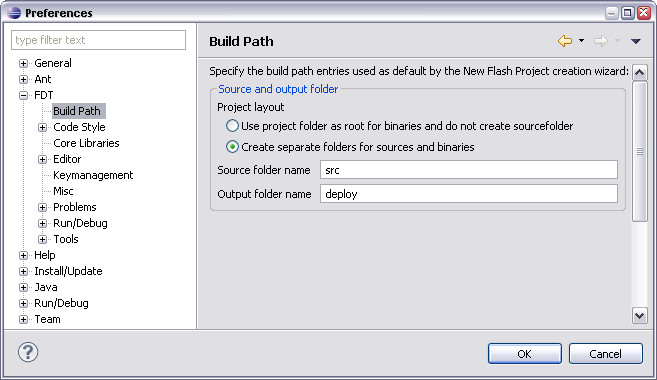

  • Window -> Preferences -> FDT -> Build Path -> Output folder name: deploy
    pref_fdt_buildpath

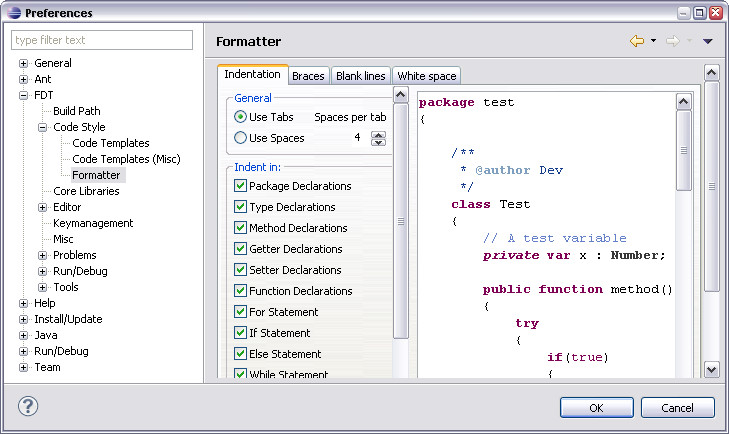

  • Window -> Preferences -> FDT -> Code style -> Formatter -> Set how you you want your code formatted
    pref_fdt_codestyle_formatter

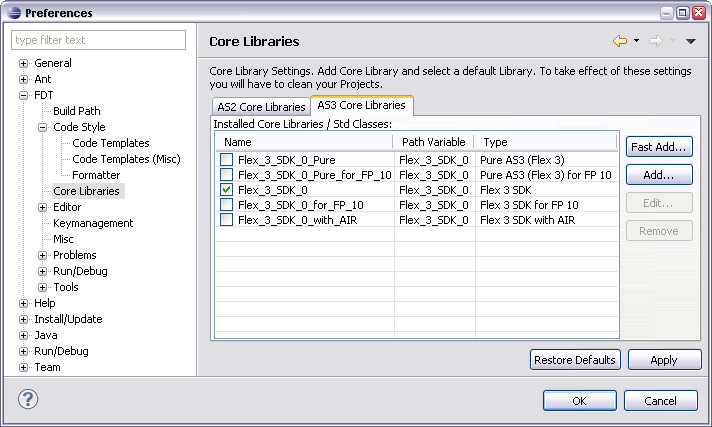

  • Window -> Preferences -> FDT -> Core Libraries -> AS3 Core Libraries -> Add…
    pref_fdt_corelibraries_1

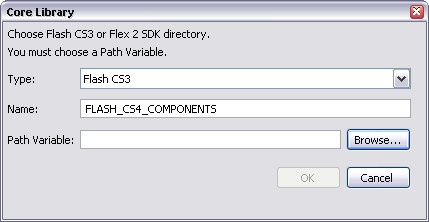

    Type: Flash CS3
    Name: FLASH_CS4
    _COMPONENTS
    click Browse…
    pref_fdt_corelibraries_2

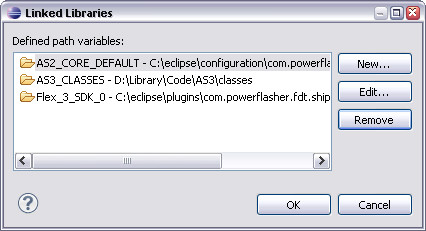

    click New...
    pref_fdt_corelibraries_3

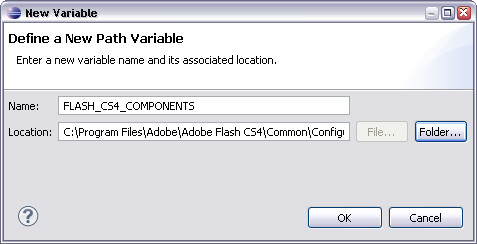

    Name: FLASH_CS4_COMPONENTS
    Location: C:\Program Files\Adobe\Adobe Flash CS4\Common\Configuration\ActionScript 3.0\FP10
    click OK


    pref_fdt_corelibraries_4

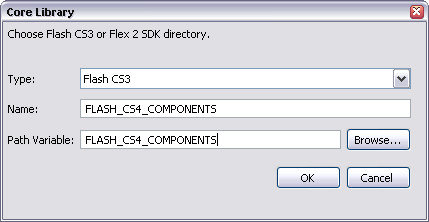

    click OK


    pref_fdt_corelibraries_5

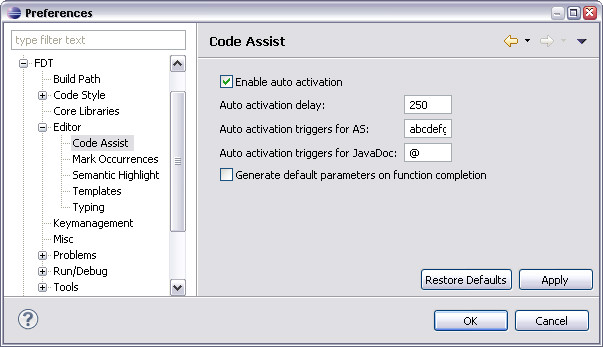

  • Window -> Preferences -> FDT -> Editor -> Code Assist -> Auto activation triggers for AS: abcdefghijklmnopqrstuvwxyz_.:
    pref_fdt_editor_codeassist

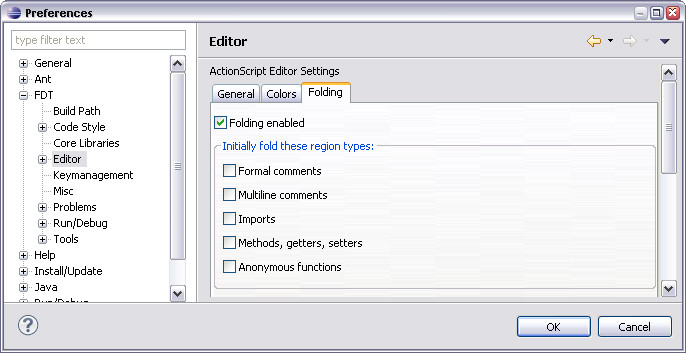

  • Window -> Preferences -> FDT -> Editor -> Folding -> Leave Folding enabled checked and uncheck all the others
    pref_fdt_editor

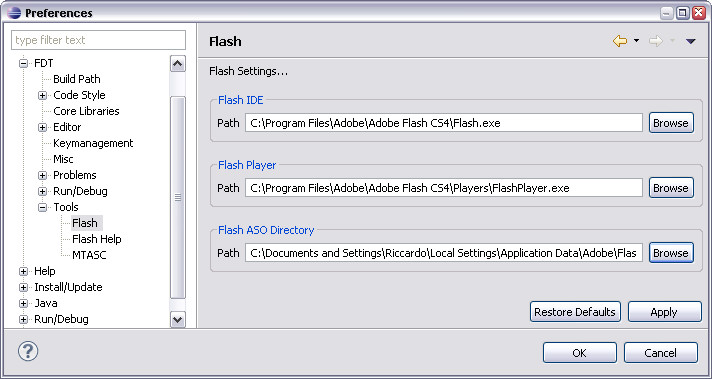

  • Window -> Preferences -> FDT -> Tools -> Flash -> Flash IDE: C:\Program Files\Adobe\Adobe Flash CS4\Flash.exe
    Window -> Preferences -> FDT -> Tools -> Flash -> Flash Player: C:\Program Files\Adobe\Adobe Flash CS4\Players\FlashPlayer.exe

    Window -> Preferences -> FDT -> Tools -> Flash -> Flash ASO Directory:
    C:\Documents and Settings\User\Local Settings\Application Data\Adobe\Flash CS4\en\Configuration\Classes\aso
    pref_fdt_tools_flash

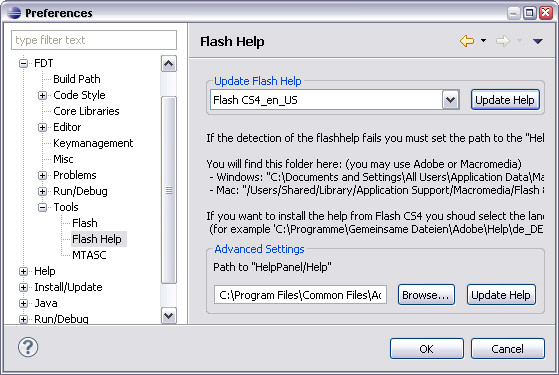

  • Window -> Preferences -> FDT -> Tools -> Flash Help -> Click Update Help
    pref_fdt_tools_flash_help

3) Perspective customization

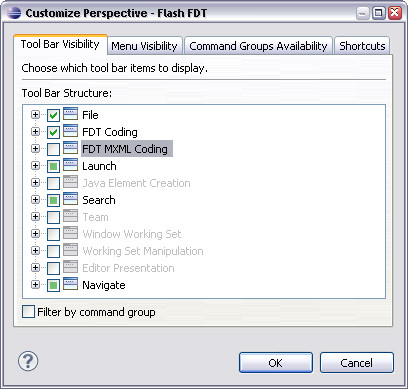

  • Window -> Customize Perspective -> Tool Bar Visibility -> Disable FDT MXML Coding
    persp_toolbar_visibility

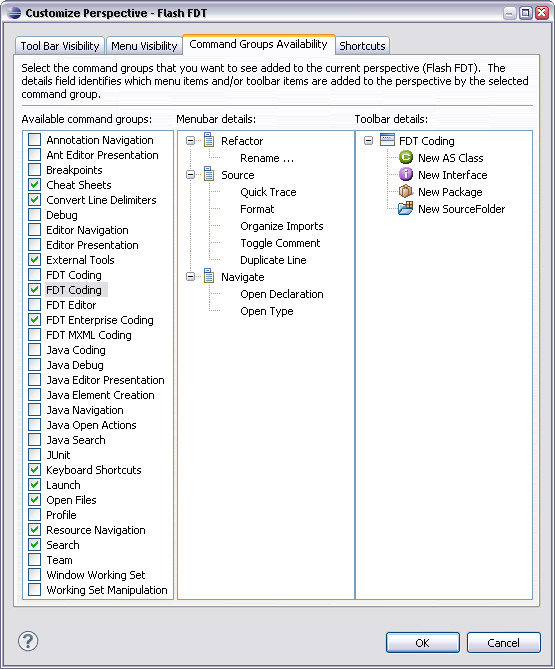

  • Window -> Customize Perspective -> Command Group Availability -> Disable Annotation Navigation
    Window -> Customize Perspective -> Command Group Availability -> Disable Editor Navigation
    Window -> Customize Perspective -> Command Group Availability -> Disable FDT MXML Codingpersp_command_groups

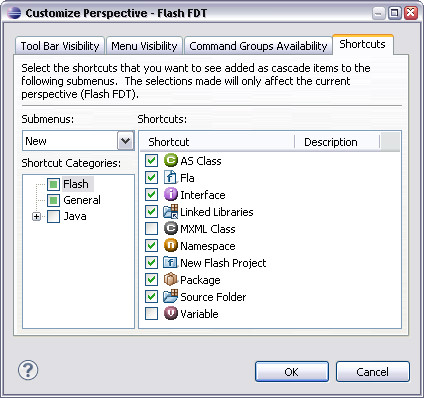

  • Window -> Customize Perspective -> Shortcuts -> Submenus: New -> Disable MXML Class
    persp_shortcuts_new

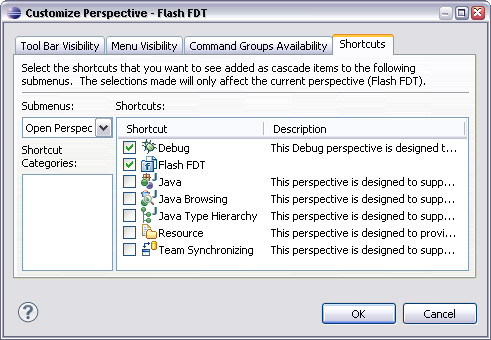

  • Window -> Customize Perspective -> Shortcuts -> Submenus: Open Perspective -> Enable Flash FDT
    Window -> Customize Perspective -> Shortcuts -> Submenus: Open Perspective -> Disable Java
    Window -> Customize Perspective -> Shortcuts -> Submenus: Open Perspective -> Disable Resourcepersp_shortcuts_open_persp

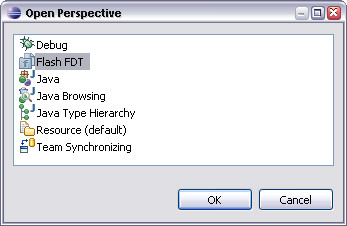

Select if it’s not already selected Window -> Open Perspective -> Other… Flash FDT and press OK

persp_open_persp

Then close this views:

  • SWF Viewer
  • Javadoc View

Then open the Ant view from Window -> Show View -> Ant and dock it with the Outline panel.
If you want you can select the button Link with Editor inside the Flash Explorer so the current file you are editing will be selected in the Flash Explorer project tree.

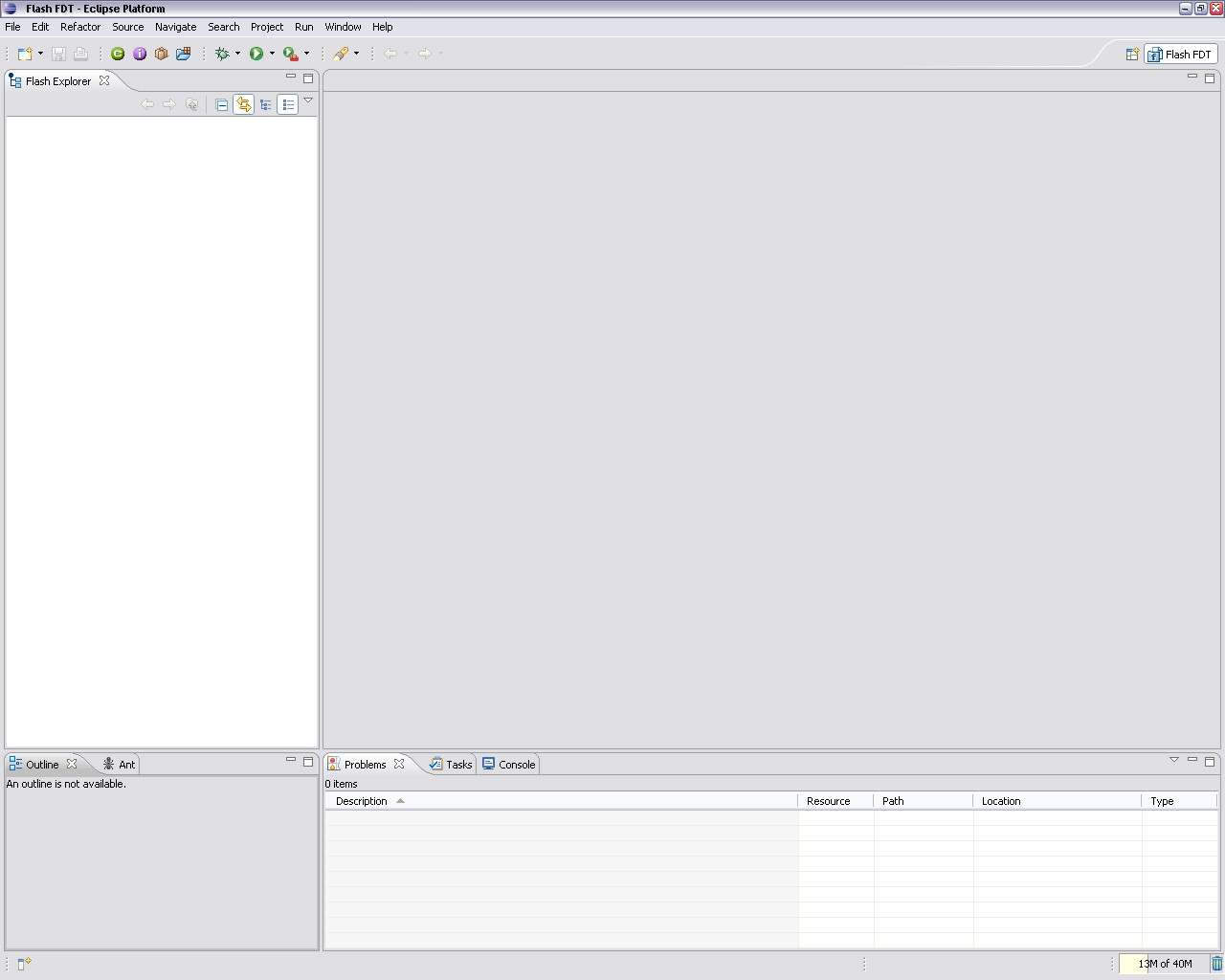

The final look will be this (click to enlarge):


ide_normal

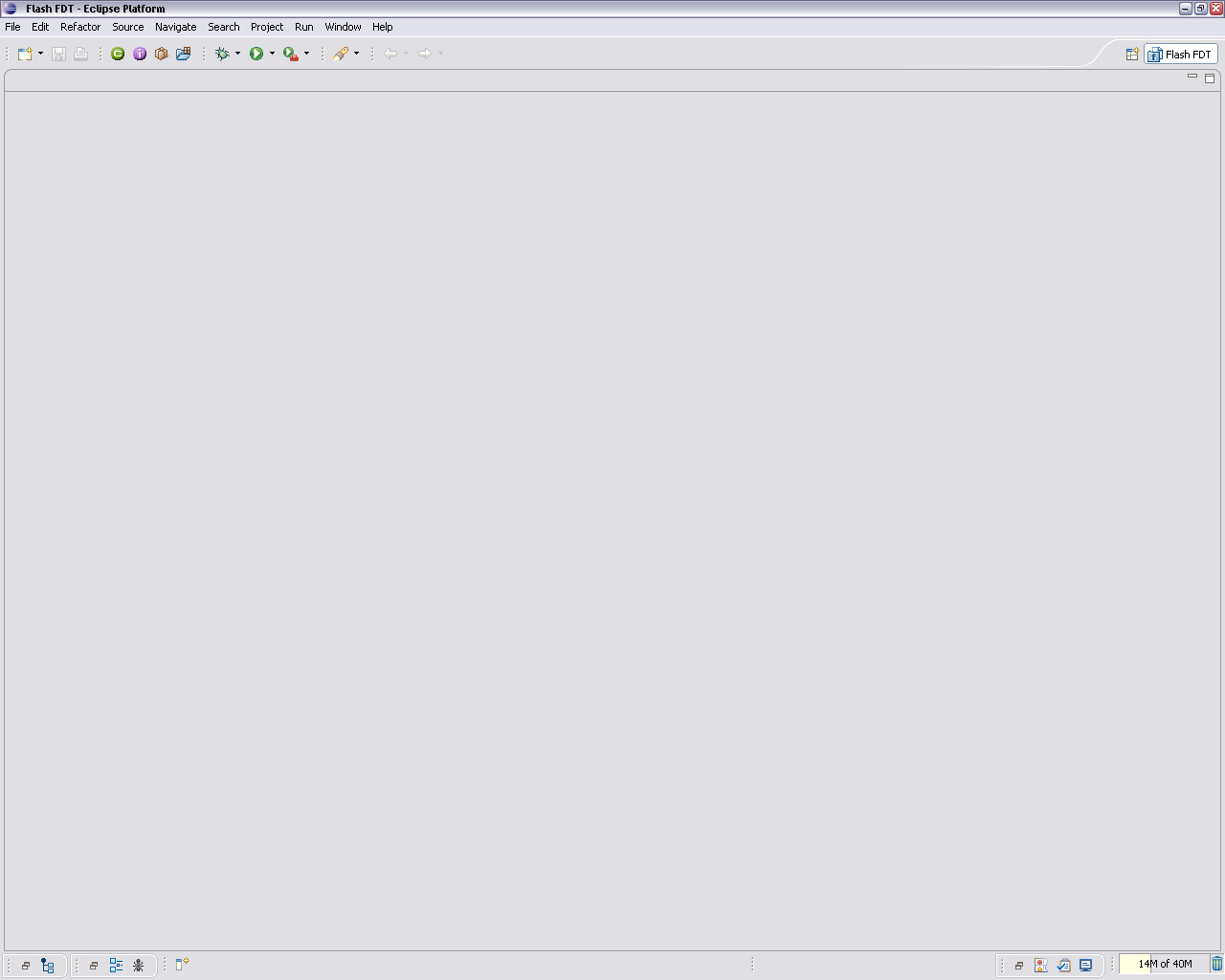

I suggest you to move the minimized toolbars (like Flash Explorer, Outline Panel, Problems, etc.) at the bottom of the interface so when everything is minimized and you’re writing code you’ve the maximum space available like this (click to enlarge):


ide_maximized

SIMILAR ARTICLES

  • http://www.itemplatez.com nirenjan.raj

    hi! i like ur website… Thanks for the sharing….

  • http://pv3d.org John Lindquist

    Do you know of any way to map a keyboard shortcut to a specific ANT task (not just the default)?

  • http://www.rblab.com/ Riccardo

    Hi John, you can run a specific task using the External Tools:
    Run -> External Tools -> External Tools Configurations…
    Double click Ant Build and in the Targets tab you can select the ANT Task that you want to execute.

    Then bind it to the shortcut you like:
    Window -> Preferences -> General -> Keys
    Select Runs the last launched external Tool and select the shortcut that you want to use.

  • Pingback: Powerflasher Blog » Eclipse 3.5 und FDT 3.2 – die Konfiguration()

  • Johnny

    Great post!
    Can I ask do you know where the Flash ASO directory is on Mac OSX?

  • http://www.rblab.com/ Riccardo

    Thanks!

    You can find the ASO directory at this path:

    /Users/username/Library/Application Support/Adobe/Flash CS4/language/Configuration/Classes
